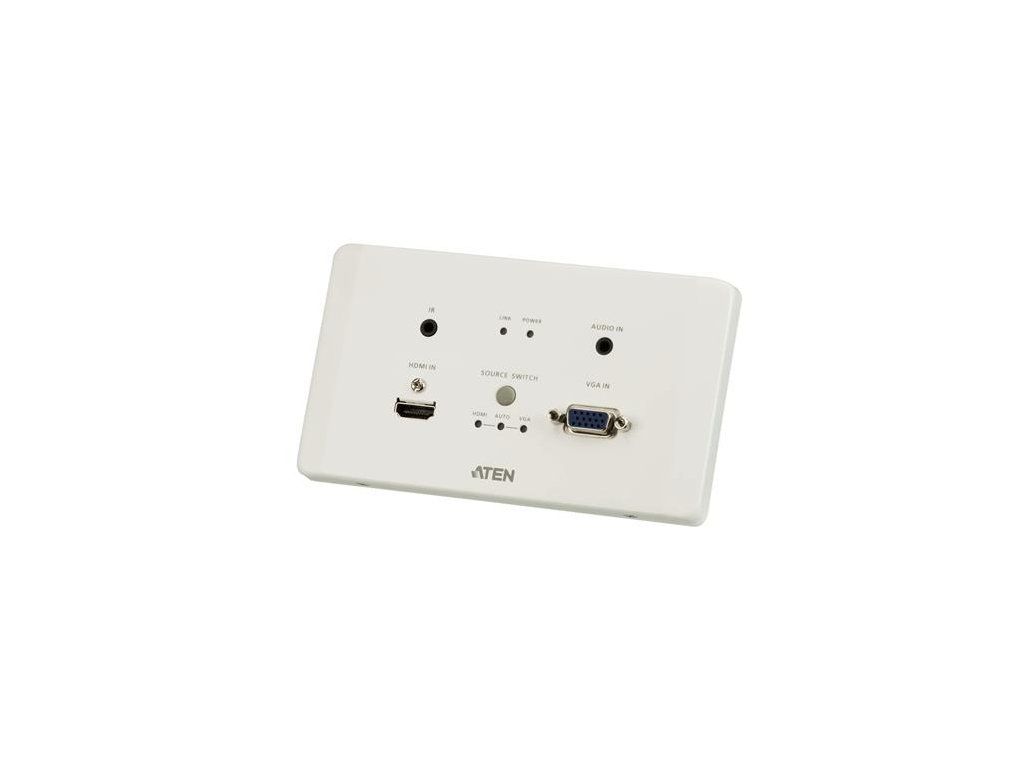

ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate (4K@100m)

Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable Superior video quality: • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p Supports Auto Switch – automatically switches to a newly plugged-in source ATEN VE2812EUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. With EU Wall Plate design, the VE2812EUT can be conveniently mounted in a two-gang junction box. The VE2812EUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. For utility flexibility, the VE2812EUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, The VE2812EUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements. Features Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable Designed to mount in a two-gang junction box HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant Superior video quality: • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p Supports Auto Switch – automatically switches to a newly plugged-in source Functions as a switch or a converter • A Switch: Connects two sources (HDMI or VGA) • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI) Supports RS-232 channel transmission or command mode for source switch control Compatible Receivers – VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers Plug-and-play Built- in 8KV / 15 KV ESD protection LED indication of sources and device status Package Contents 1x VE2812EUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate 1x 3 Pin RS-232 Terminal Block 1x 2 Pin Power Terminal Block 1x Mounting Kit 1x 0AD6-1F05-26EG Power Adapter 1x User Instructions
