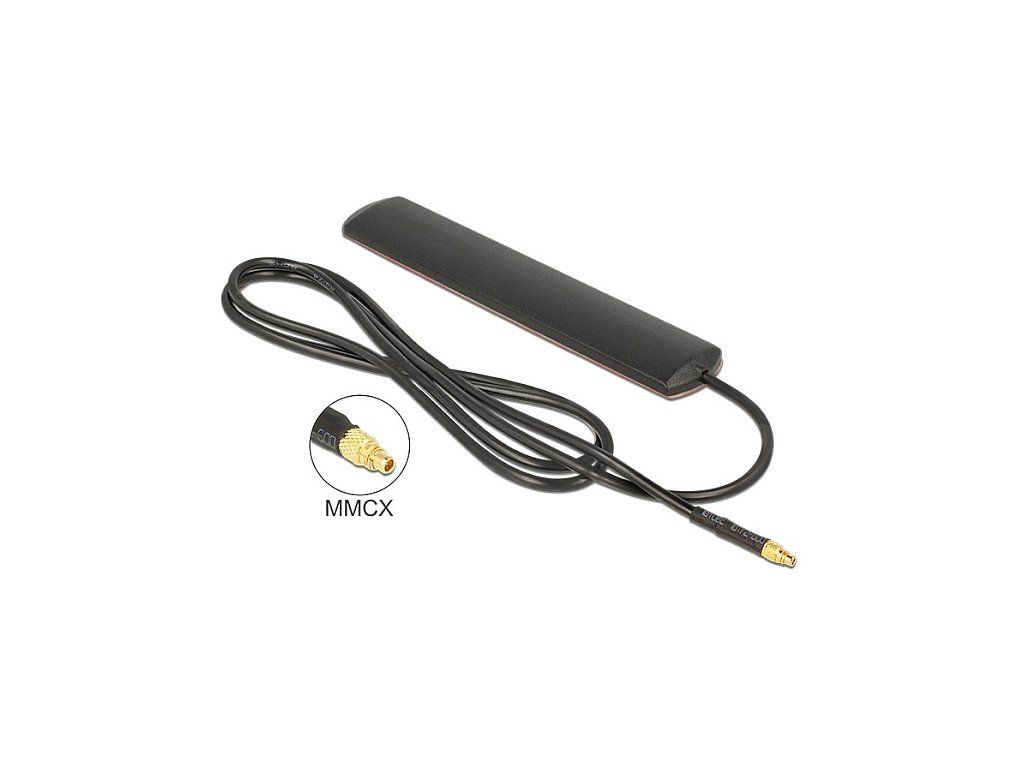

Delock LTE Antenna MMCX Plug 3 dBi omnidirectional fixed black adhesive mounting

Popis This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible. Specifikace • Connector: MMCX plug • LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44 • Frequency range: 690 - 960, 1710 - 2700 Mhz • GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave • Antenna gain: 3 dBi • Impedance: 50 Ohm • Polarisation: vertical • VSWR: 2.0. • Operating temperature: -10 °C ~ 55 °C • Housing: ABS UV resistant • Colour: black • Dimensions (LxWxH): ca. 115 x 22 x 5 mm • Cable category: coaxial • Cable type: RG-174 • Cable colour: black • Cable attenuation: 1,5 dB @ 1,5 GHz per meter • Cable diameter: ca. 2.7 mm • Cable length incl. connector: ca. 3 m Systémové požadavky • Device with free MMCX connector Obsah balení • LTE antenna Balení • Poly bag
