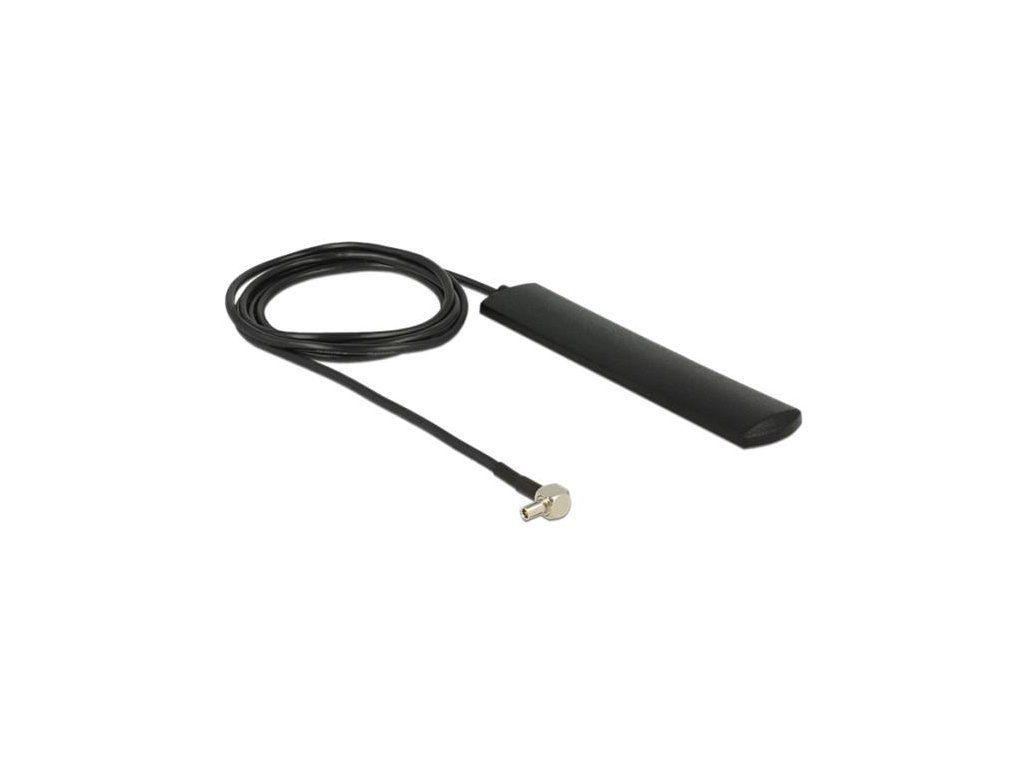

Delock LTE Antenna TS-9 plug 3 dBi omnidirectional fixed black adhesive mounting

Popis This Delock LTE antenna allows the use of different LTE bands indoors. It is completely Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee compatible. Specifikace • Connector: TS-9 plug • LTE Band 1 - 10 / 12 - 20 / 23 / 25 - 30 / 33 - 41 / 44 • Frequenzy range: 690 - 960 / 1710 - 2700 Mhz • Bluetooth / GSM / UMTS / WLAN 2.4 GHz / Z-Wave / ZigBee • Antenna gain: 3 dBi • Impedance: 50 Ohm • Polarisation: linear, vertical • Horizontal beam angle: 360° • VSWR: 2.0 • Operating temperature: -10 °C ~ 55 °C • Housing material: ABS UV resistant • Colour: black • Dimensions (LxWxH): ca. 115 x 22 x 5 mm • Cable: coaxial • Cable type: RG-174 • Cable color: black • Cable loss: 1.5 dB @ 1.5 GHz per meter • Cable diameter: ca. 2.7 mm • Cable length: ca. 1 m Systémové požadavky • Device with a free TS-9 connector Obsah balení • LTE antenna Balení • Poly bag
