Differential Pressure & Temperature

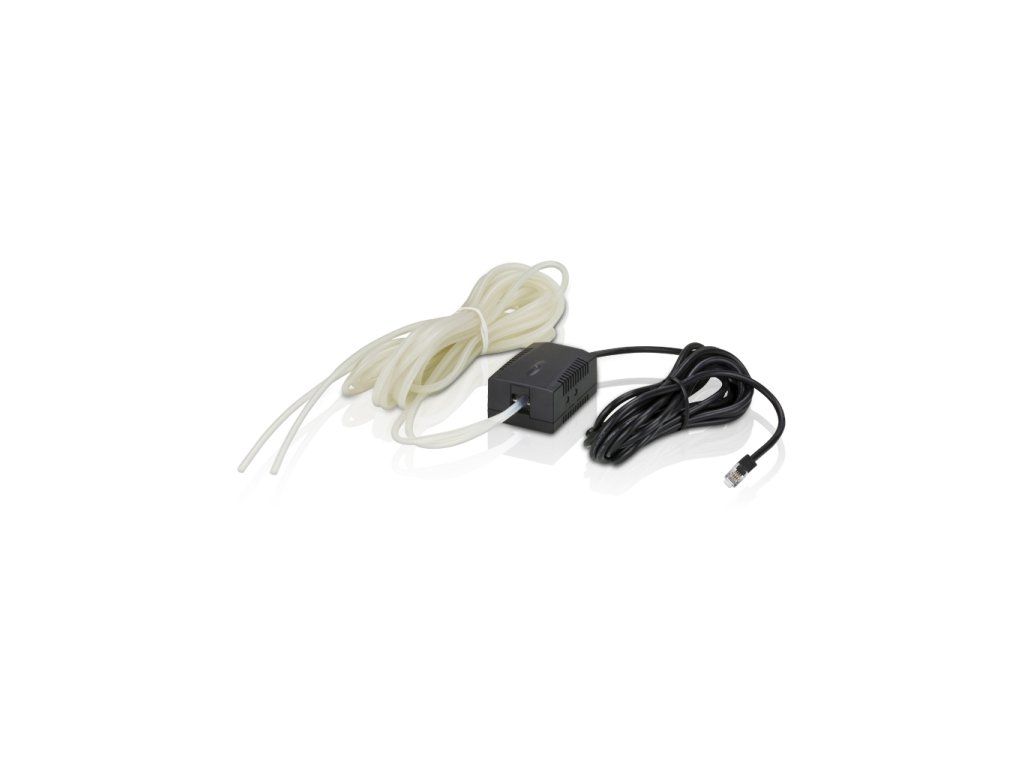

For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of Differential Pressure & Temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity. * The Sensor is an optional accessory and you can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required. Package Contents 1x Differential Pressure & Temperature Sensor 2x Air Tube Features: ¦ Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure ) ¦ Compact design – built in 3 m cable ¦ High sensitivity ¦ Easy operation Specification: Connectors RJ11-4P4C Measurement Range Temperature: -19-60°C Pressure: +-500 Pa Accuracy Temperature: +-1°C (0-40°C) Pressure: +-1 % (15-35°C) T.C: -0.1 Pa/°C Power Consumption 5 VDC (Max), 3mA(Typical) Environmental Operating Temperature 0-60°C, <95% RH Non-condense Storage Temperature 0-40°C Humidity < 90% RH Physical Properties Housing Plastic Weight 0.09 kg Cable Length 3 m
