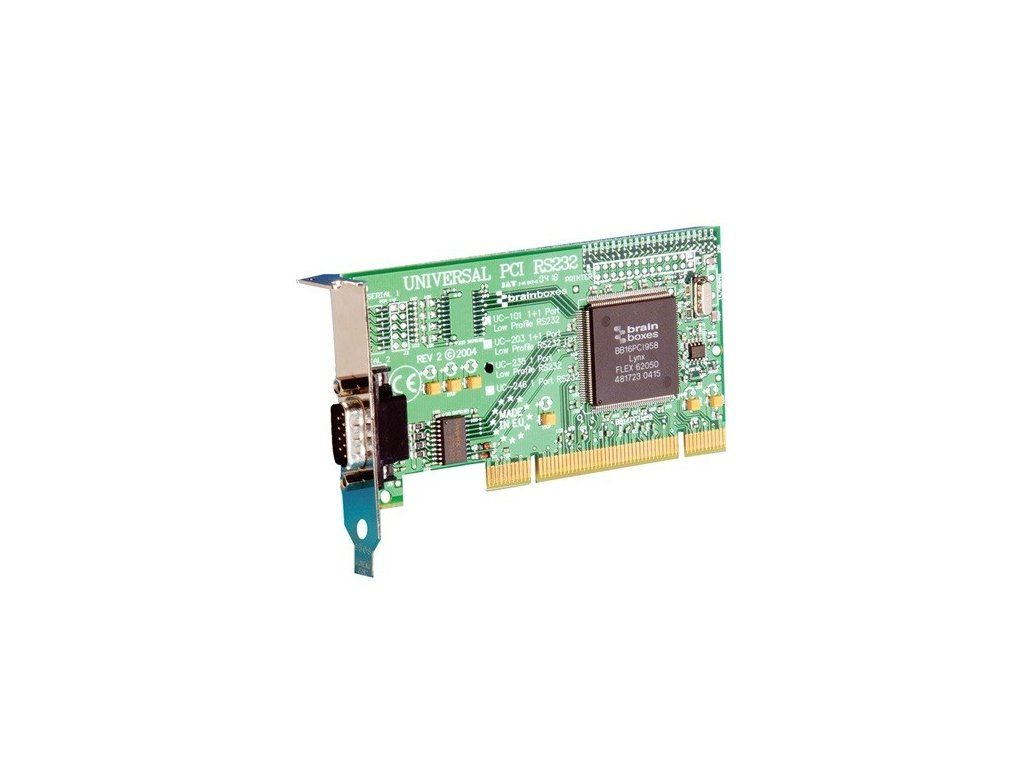

Lenovo Serial adapter Brainboxes UC-235 PCI low profile - seriový port RS232/DB9

Port Ports1 ProtocolRS232 ConnectorDB9 Connector - 9 Pin Male UARTBrainboxes 16C958 UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode Tx FIFO Size128 Rx FIFO Size128 Operating DistanceEIA - RS232 Standard CableNo Cable; Integrated Connector Port Settings Max Baud Rate115,200 Data Bits5,6,7 or 8 ParityOdd, Even, None, Mark or Space Stop Bits1, 1.5 or 2 Flow ControlRTS/CTS, DSR/DTR, XON/XOFF Tx/Rx ModesPoint to Point General PCB Layers4 Form FactorLow Profile Includes Printer PortNo Opto IsolatedNo Power Consumption 190mA @ 5V, 12mA @ 12V Product Weight 0.062 kg, 0.14 pounds Product Dimensions 132(l) x 18(w) x 80(h) mm Podporované OS : Windows XP, 2000, Vista, 7, Server 2008, Server 2003, MS DOS
