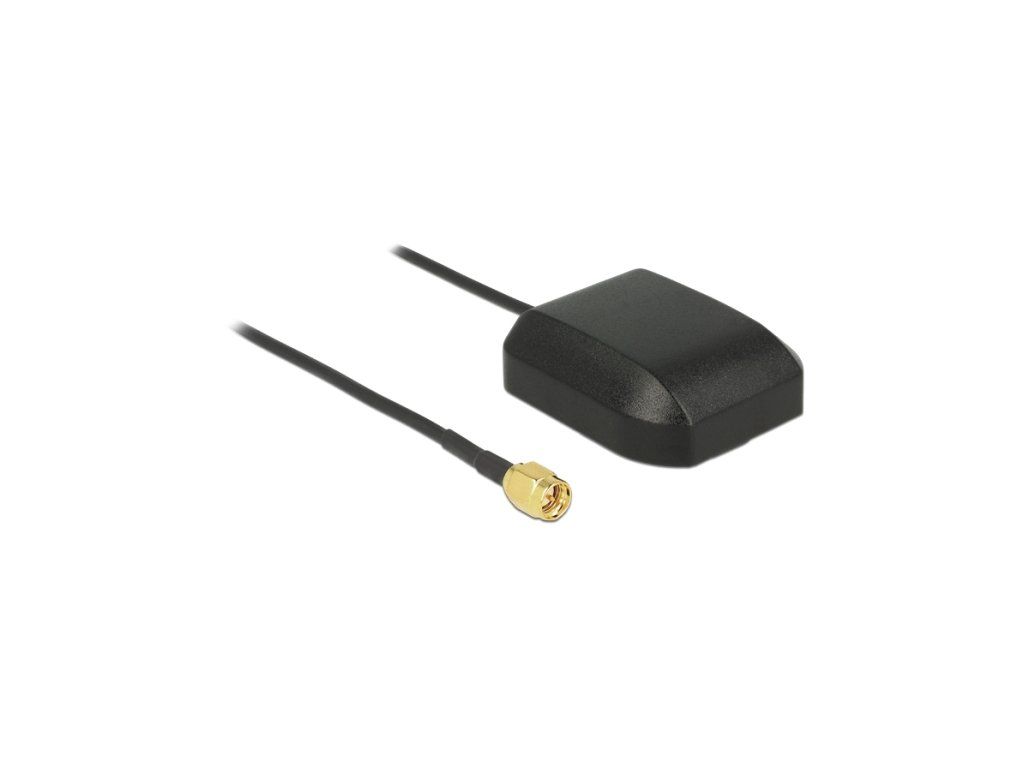

Navilock NL-281GG SMA Plug GLONASS+GPS Multi GNSS antenna 3 m

This external Navilock GNSS antenna is equipped for the simultaneous reception of GPS and GLONASS signals. Specifikace • External active additional antenna for GNSS receivers • Connector: SMA plug • Polarisation: RHCP • Frequency range: GPS: 1575,42 MHz +/- 1.023 MHz GLONASS: 1598,0625 MHz ~ 1605,375 MHz • Bandwidth (C/A): GPS: > 2 MHz GLONASS: > 8 MHz • Gain: 5 dBic (7cm x 7cm ground plane) • Internal patchantenna: 25 x 25 x 4 mm • VSWR: 1.5 LAN • Gain: 30 dBi • Cable category: coaxial • Cable typ: RG-174 • Cable length: 3 m • Cable colour: black • Impedance: 50 Ohm • Voltage: 2.80 ~ 5.00 V • Current: typ. 13.50 mA @ 3.0 V • VSWR: 2.0 • Imedanz: 50 Ohm • Protection class: IP66 • Weight: 0.150 kg • Dimension (LxWxH): ca. 44.00 x 37.00 x 14.50 mm • Magnetical bottom Systémové požadavky • Device with free SMA connector Obsah balení • GNSS Antenne Balení • Poly bag
