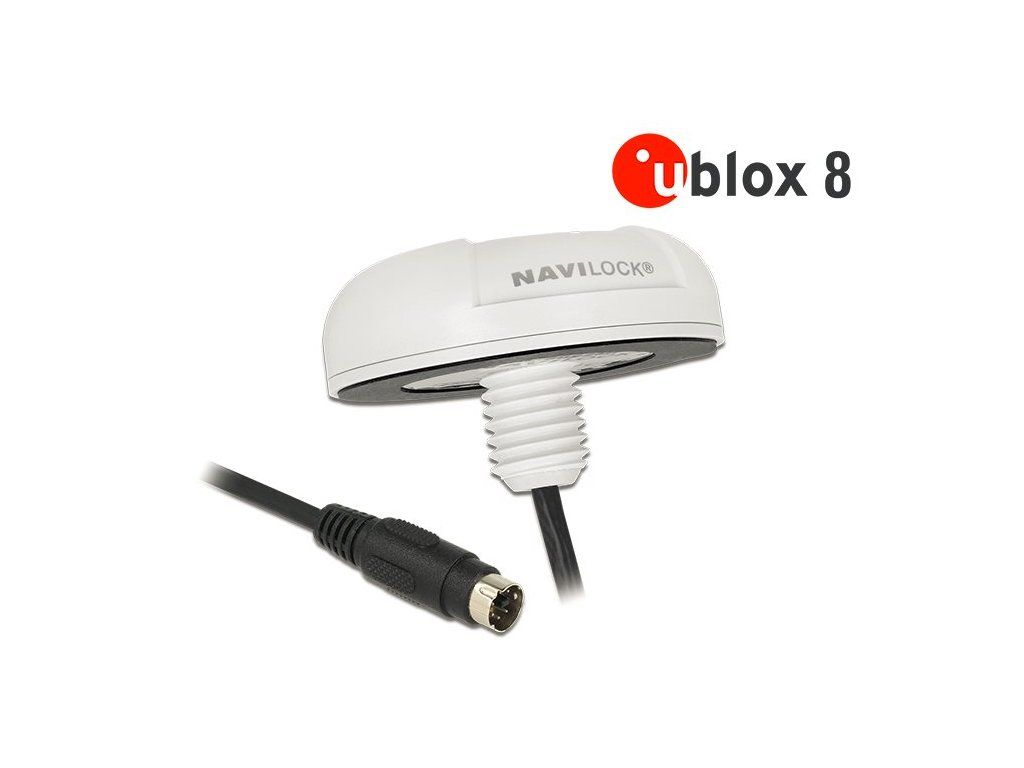

Navilock NL-8222MP MD6 Serial PPS Multi GNSS Receiver u-blox 8 10 m

The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a notebook and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-8222MP GNSS receiver is especially designed for installation on a white ground (boat, camper, bus etc.) It is unremarkable and fits into the vehicle concept due to its housing design. Specifikace • Connector: MD6 Navilock plug (USB or serial cable are optional available) • u-blox 8 UBX-M8030-KT chipset • Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602.5625 ~ 1615.5000 MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz • Accepts the signals of up to 72 satellites at the same time • Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS) • Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG • Auto Baud Rate up to 115200 bps • PPS signal on pin 6 • Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS) • Sensibility max. –167 dBm • IPX7 protection class • LED-indicator for GPS-status • Operating temperature: -20 °C ~ 60 °C • Cold start in ca. 26 seconds • Hot start in ca. 1 second • Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS • Cable length: ca. 10 m • Dimensions (O x H without screw thread): ca. 62 mm x 21 mm Systémové požadavky • Windows Vista/7/8/8.1/10, Linux Kernel 2.6 • MD6 connection cable Obsah balení • MD6 seriell Empfänger • Befestigungsmaterial: Mutter und Unterlegscheibe Edelstahl • Treiber CD • Bedienungsanleitung auf CD ROM Balení • Box
